Easycap

32Ch Standard EasyCap Set

32Ch Standard EasyCap Set

Register to view prices

SKU:EC-40-UCHW-36

Size
Cut

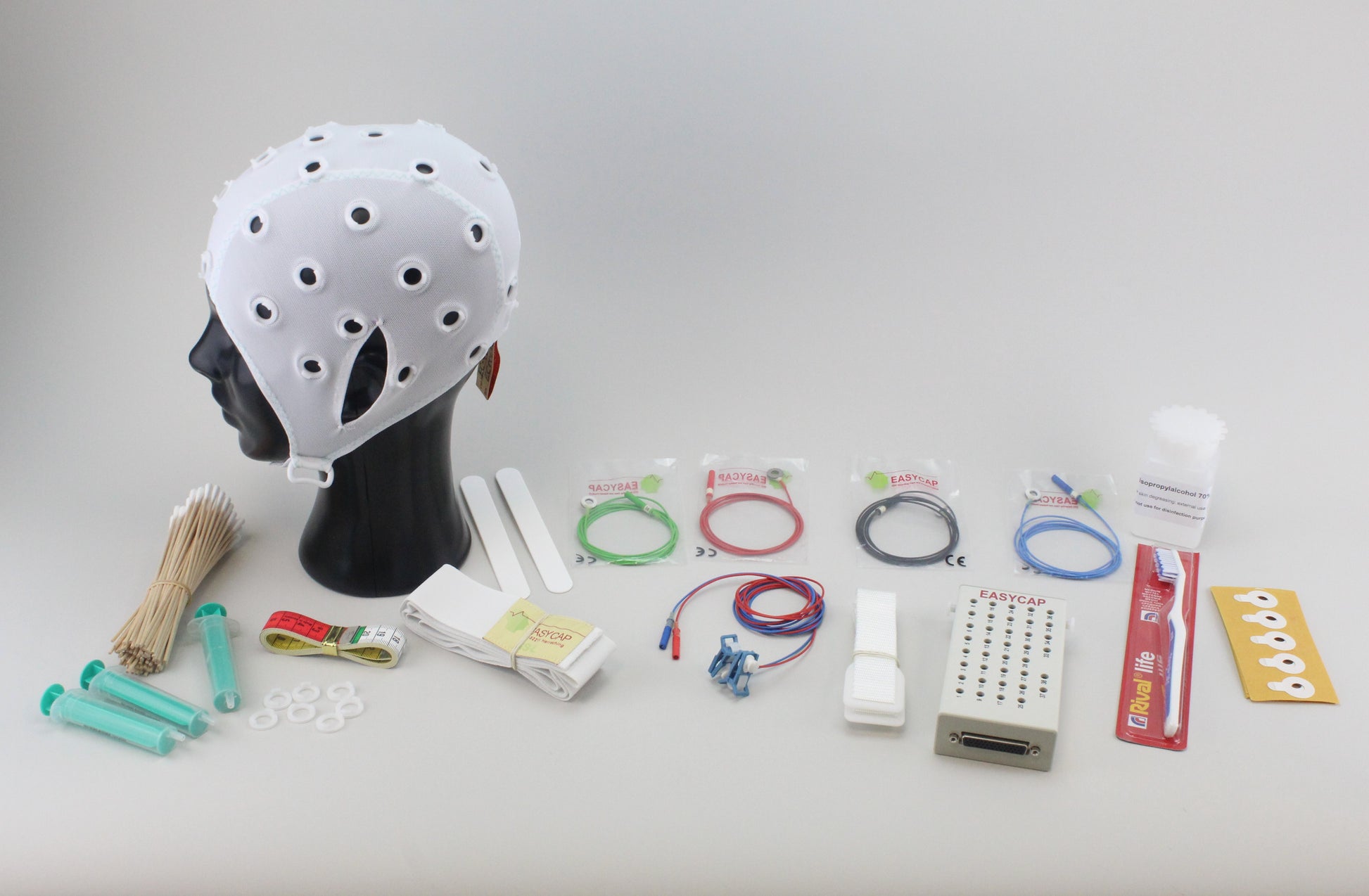

32 Channel EasyCap Set - Just Add Amplifier!

EasyCap Sets give you everything you need to start recording research grade EEG today - you just need to add an amplifier, and you're ready to go.

This set includes

1 EasyCap with holders in 36 positions according to the International 10-20 Electrode System

38 labelled ring electrodes type B10 and a quick connect interface

A supply of lab consumables and accessories, including our abrasive electrolyte gel, a measuring band and adhesive tapes for fitting electrodes directly to the skin.

And More!

Our EasyCap system means that you only need one set of electrodes - simply swap them between caps and measure more participants with less downtime.

Additional caps can be ordered here: Link to caps

Standard 36 channel layout: Download the layout file and full list of contents.

Fabric, elasticity

Our caps are made with two different fabric elasticities.

The medium elasticity or 'High Precision' fabric provides a precise reproduction of electrode positions, across and within subject recordings, a longer life span for general wear and tear, and a quick drying time.

The high elasticity or 'High Comfort' fabric provides an optimal fit for a larger variety of head shapes, and due to its softness is great for children or participants with a sensitive scalp.

On our webshop we sell caps according to our standard recommendation, which depends on the size of the cap:

  • 52 cm and above are manufactured with High Precision fabric;
  • 50 cm and below are manufactured with High Comfort fabric.



Sizes

We provide caps in a range of sizes for human participants at any age.

Cap sizes reflect the participant's head circumference, measured at the hat line and expressed in even, two centimetre increments. They normally feature as the final 2 digits on our cap order codes (e.g. BC-64-UCMW-56).

Typical adult head sizes:

  • 62
  • 60
  • 58 (average male)
  • 56 (average female)
  • 54

Children's head sizes approximately:

  • 54 (11-14 years)
  • 52 (5-10 years)
  • 50 (3-4 years)

Infant head sizes approximately:

  • 48 (2 years)
  • 46
  • 44 (7 months)
  • 42
  • 40 (3 months)
  • 38
  • 36 (newborn)

Cuts

In contrast to other EEG cap manufacturers, Easycap uniquely offers two standard cap cuts.

For participants with oval or rectangular head shapes, we offer the "Caucasia cut". It is a popular choice worldwide.

For participants with rounder head shapes, such as those with an Asian heritage, we also offer the "Asia Cut". We developed these in collaboration with researchers in Asia, therefore these caps are the first choices for laboratories in an area with a high demographic of asian participants such as China, Korea, Japan and Taiwan.
