Easycap

128Ch Standard BrainCap for TRIUX (MEG)

128Ch Standard BrainCap for TRIUX (MEG)

Register to view prices

BC-MEG-128-X2-UCMW-52

Size
Cut

Complete EEG recording cap with 128 built-in Multitrode electrodes for MEG, and two loose single socket Multitrode electrodes for MEG (reference and ground).

White fabric, Subtemporal-type cap  Fabric is made with medium elasticity (High Precision) material in sizes 52 and above, or high elasticity (High Comfort) in sizes 50 and below. Comes with built-in holders for TRIUX headcoils.

All electrodes are Multitrodes with sintered Ag/AgCl sensors. They are buttoned directly into the cap (total height 3,5 mm) or can be attached to the skin with double-sided adhesive rings. All electrodes are number- and name-labelled at the sensor end. The cap and electrodes are built using methods and parts designed to minimize sources of ferrous or pseudo-ferrous contamination.

The layout is designed so that the first 32 and 64 channels represent a subset of coverage of the International 10-20/10-10 system respectively.

The cables are fixed to the cap with nylon threads for optimal cable routing. The length of cable trees is approx. 170 cm.

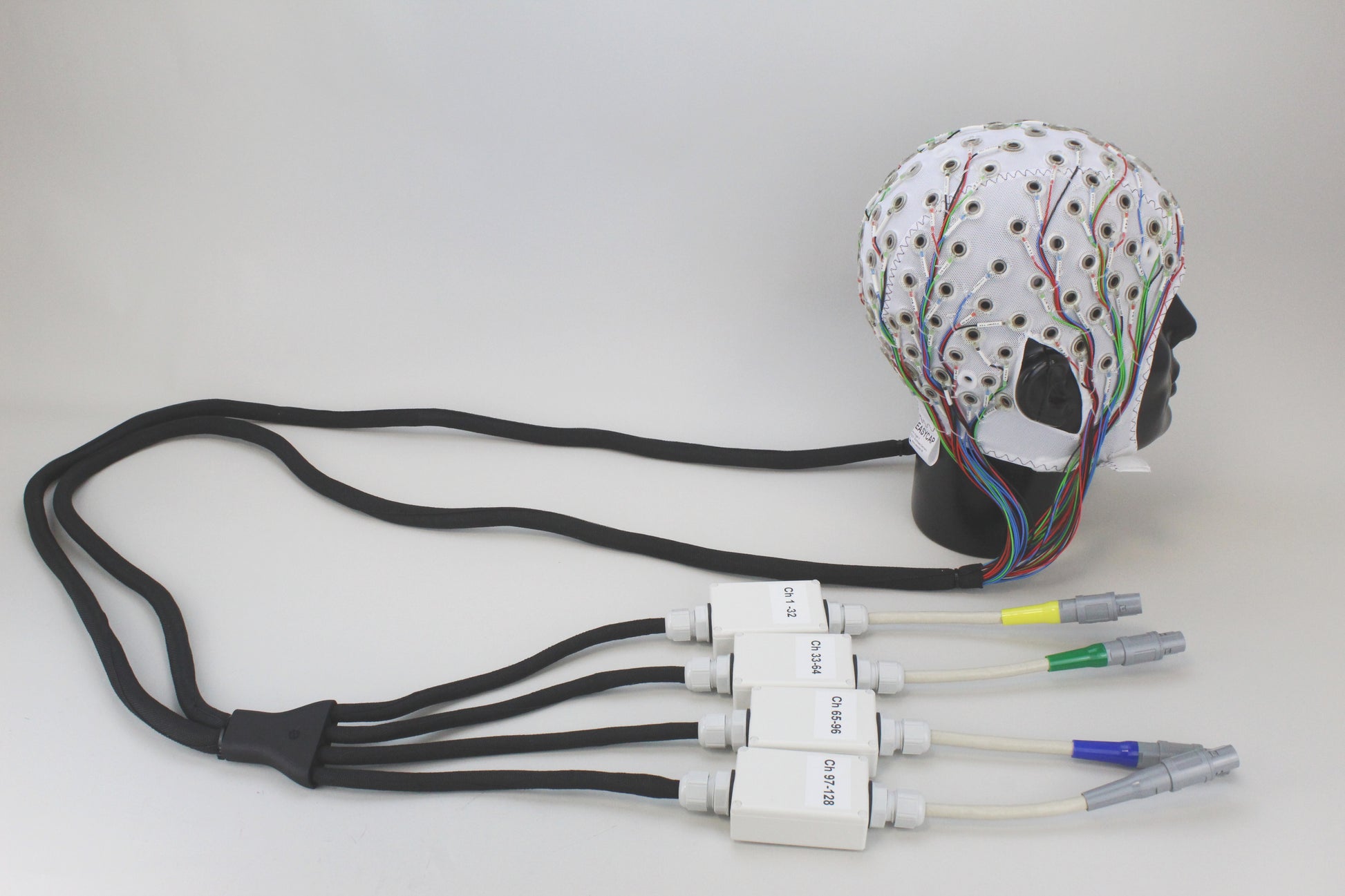

The cable trees meet at four connector boxes with push-pull connectors for TRIUX.

Standard 128 channel layout: Download the layout file

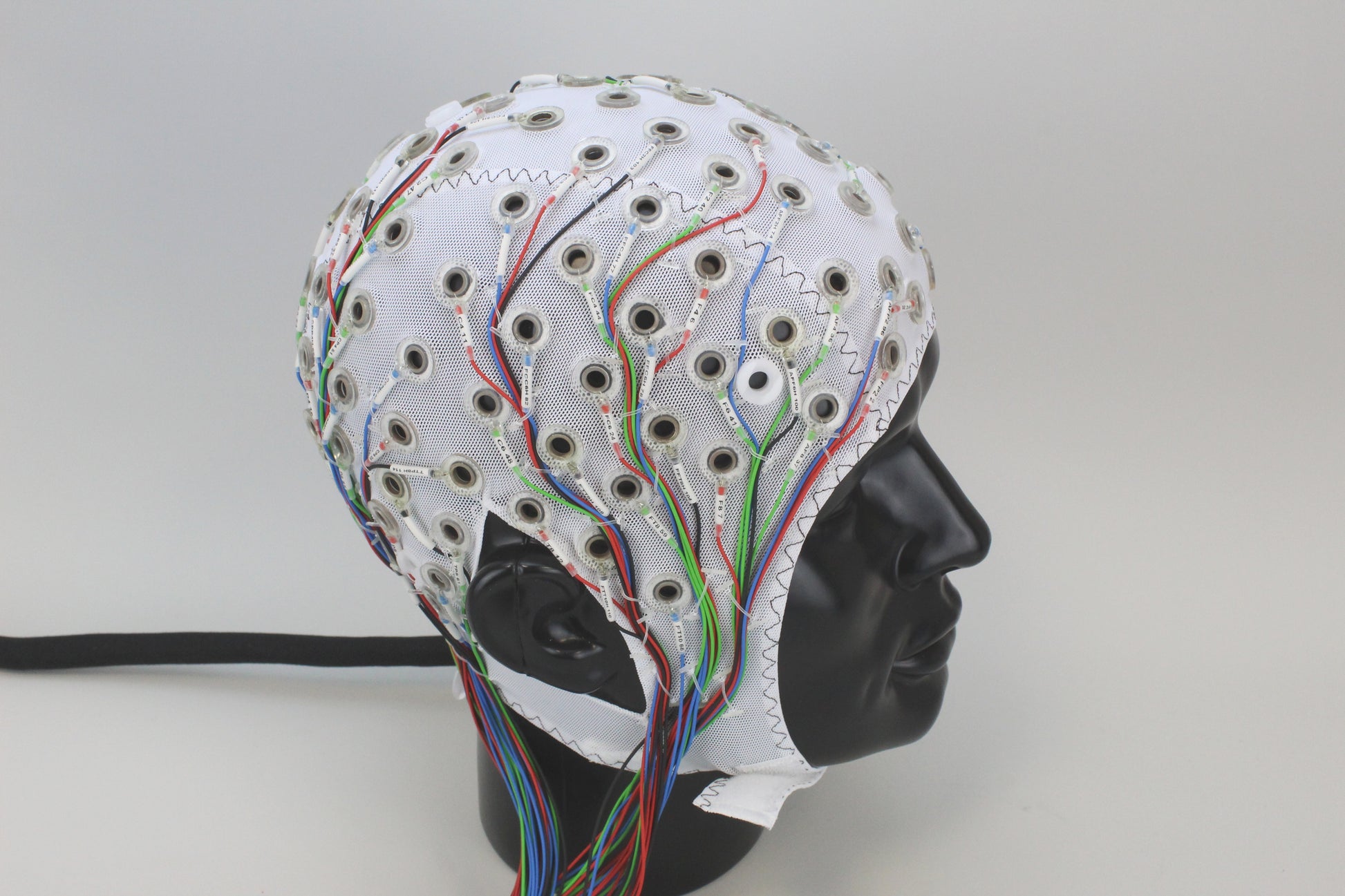

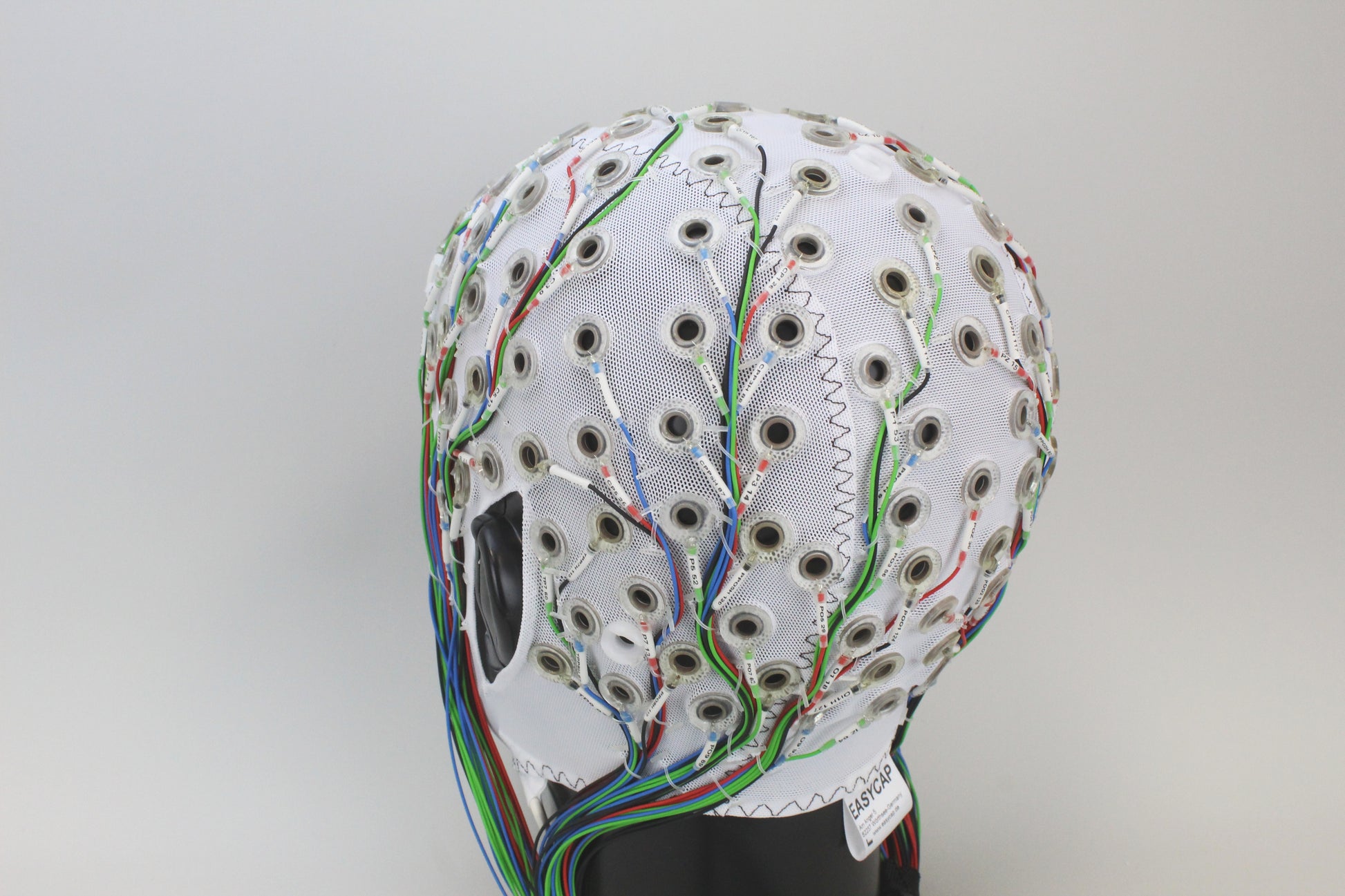

NOTE: Photos are of non-standard SubInion-cap type. Please enquire with us for this option before placing an order.

Fabric, elasticity

Our caps are made with two different fabric elasticities.

The medium elasticity or 'High Precision' fabric provides a precise reproduction of electrode positions, across and within subject recordings, a longer life span for general wear and tear, and a quick drying time.

The high elasticity or 'High Comfort' fabric provides an optimal fit for a larger variety of head shapes, and due to its softness is great for children or participants with a sensitive scalp.

On our webshop we sell caps according to our standard recommendation, which depends on the size of the cap:

  • 52 cm and above are manufactured with High Precision fabric;
  • 50 cm and below are manufactured with High Comfort fabric.



Sizes

We provide caps in a range of sizes for human participants at any age.

Cap sizes reflect the participant's head circumference, measured at the hat line and expressed in even, two centimetre increments. They normally feature as the final 2 digits on our cap order codes (e.g. BC-64-UCMW-56).

Typical adult head sizes:

  • 62
  • 60
  • 58 (average male)
  • 56 (average female)
  • 54

Children's head sizes approximately:

  • 54 (11-14 years)
  • 52 (5-10 years)
  • 50 (3-4 years)

Infant head sizes approximately:

  • 48 (2 years)
  • 46
  • 44 (7 months)
  • 42
  • 40 (3 months)
  • 38
  • 36 (newborn)

Cuts

In contrast to other EEG cap manufacturers, Easycap uniquely offers two standard cap cuts.

  • C-Cut: designed for oval head shapes. It is the first choice of laboratories located in America, Europe and India.
  • A-Cut: designed for round head shapes. It is favoured by laboratories located in China, Japan and Korea or by any other lab with participants with North- and East Asian heritage.

Example order codes are CACS-SCMW-56 for C-Cut, and CACS-SAMW-for A-Cut.

This option comes at no extra cost, simply add the desired variant into your basket.
